User Guide

ArtHive is a desktop application for artists to manage clients and commissions, optimized for use via a Command Line Interface (CLI) while still having the benefits of a Graphical User Interface (GUI). If you can type fast, ArtHive can get your tasks done faster than traditional GUI apps.

ArtHive is intended for managing Singapore-based contacts, where phone numbers are 8 digits long and start with 3, 6, 8 or 9.

• Quick start
• Features
  • Viewing help : help
  • Listing all contacts : list
  • Adding a contact: add
  • Editing a contact : edit
  • Locating contacts: find
  • Deleting a contact: delete
  • Tagging a Contact with a Tag/Project : tag
  • Untagging a Contact with a Tag/Project : untag
  • Updating the status of a Project : setstatus
  • Saving the data : save
    • Editing the data file
  • Creating snapshot of data: snapshot
  • Switching preferred contact : switchcontact
  • Clearing all entries : clear
  • Exiting the program : exit
• FAQ
• Known issues
• Command summary

Quick start

1. Ensure you have Java 17 or above installed in your Computer.
   Mac users: Ensure you have the precise JDK version prescribed here.

2. Download the latest .jar file from here.

3. Copy the file to the folder you want to use as the home folder for ArtHive.

4. Open a command terminal, cd into the folder you put the jar file in, and use the java -jar arthive.jar command to run the application.
   A GUI similar to the below should appear in a few seconds. The app may already contain some sample data which may not be the same as shown below.


5. Type the command in the command box and press Enter to execute it. e.g. typing help and pressing Enter will open the help window.
   Some example commands you can try:

   • list : Lists all contacts.

   • add n/John Doe p/98765432 e/johnd@example.com : Adds a contact named John Doe to ArtHive.

   • delete 3 : Deletes the 3rd contact shown in the current list.

   • clear : Deletes all contacts.

   • exit : Exits the app.

6. Refer to the Features below for details of each command.

Features

Viewing help : help

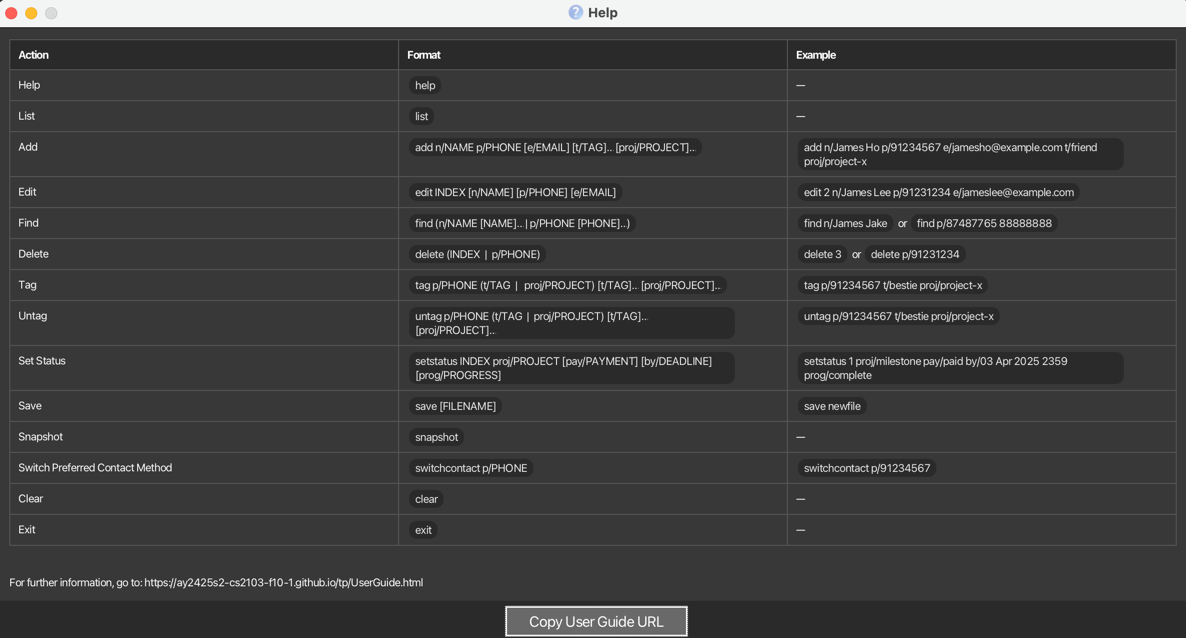

Shows a message explaning how to access the help page.

Format: help

Listing all contacts : list

Shows a list of all contacts in ArtHive.

Format: list

Adding a contact: add

Adds a contact to ArtHive.

Format: add n/NAME p/PHONE [e/EMAIL] [t/TAG]…​ [proj/PROJECT]…​

Tip: A contact can have any number of tags and/or projects (including 0).

Tip: The email address is optional. You can choose to leave it blank if you prefer not to provide it.

Tip: The app allows duplicate names but does not allow duplicate phone numbers.

Name (n/NAME)

• When specifying a NAME, please ensure it follows these rules:
  • Allowed Characters:
    • Alphanumeric characters (A-Z, a-z, 0-9)
    • Names can contain spaces. However, trailing and leading white space will be trimmed (e.g. “ Johnny Test “ will be saved as “Johnny Test”).
    • Special characters: -, _, ., /, , and '
    • Maximum length: 40 characters
  • Not Allowed Characters:
    • Prefix commands (n/, p/, e/, t/, proj/, by/, pay/, prog/) are NOT allowed
    • Any other special characters outside the allowed list

Phone (p/PHONE)

• PHONE must be exactly 8 digits long, beginning with either 3, 6, 8 or 9.

Email (e/EMAIL)

• The EMAIL (if provided) must be in a valid email address format (i.e. name@domain.com), without spaces.
• Local-part of an email must NOT contain 2 or more consecutive dots (e.g. johny..test@gmail.com would be invalid)
• Local-part of an email are ALLOWED to have multiple consecutive special characters (+, -, _)
• Local-part of an email are ALLOWED to have dots (.), but the dots must not appear consecutively (e.g. Johnny…..test@example.com)
• Email MUST contain a Top-Level Domain.

Tag/Project (t/TAG / p/PROJECT)

• TAG/PROJECT can only contain alphanumeric characters with underscore and hyphens, and be between 1 and 20 characters long.

Examples:

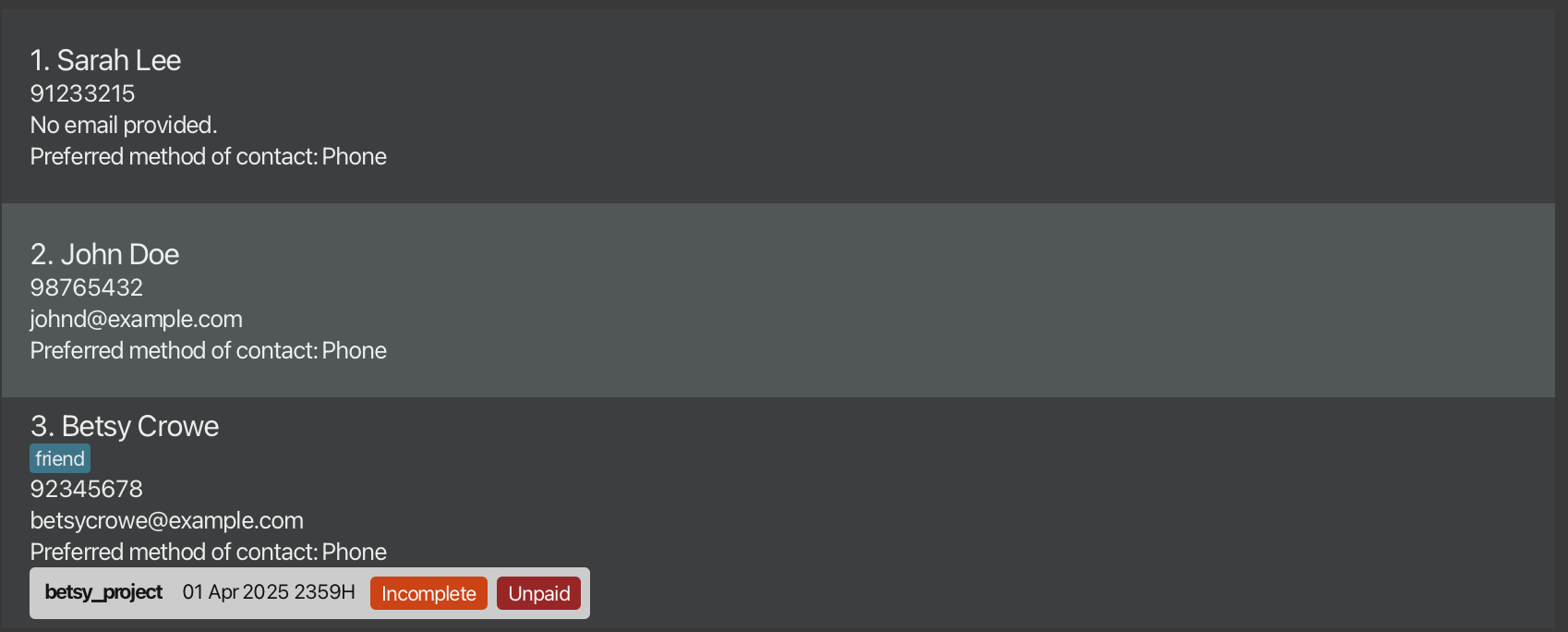

• add n/Sarah Lee p/91233215
• add n/John Doe p/98765432 e/johnd@example.com

• add n/Betsy Crowe e/betsycrowe@example.com p/92345678 t/friend proj/betsy_project



Editing a contact : edit

Edits an existing contact in ArtHive.

Format: edit INDEX [n/NAME] [p/PHONE] [e/EMAIL]

• Edits the contact at the specified INDEX.
  • The index refers to the positive integer within the bounds of the displayed contact list 1, 2, 3, …​
  • The INDEX must be a valid index (i.e. Positive integer within the bounds of the displayed contact list).
• Only edits to a contact’s name, phone number and email address is allowed.
• At least one of the optional fields must be provided.
• Existing values will be updated to the input values.

Name (n/NAME)

• When specifying a NAME, please ensure it follows these rules:
  • Allowed Characters:
    • Alphanumeric characters (A-Z, a-z, 0-9)
    • Names can contain spaces. However, trailing and leading white space will be trimmed (e.g. “ Johnny Test “ will be saved as “Johnny Test”).
    • Special characters: -, _, ., /, , and '
    • Maximum length: 40 characters
  • Not Allowed Characters:
    • Prefix commands (n/, p/, e/, t/, proj/, by/, pay/, prog/) are NOT allowed
    • Any other special characters outside the allowed list

Phone (p/PHONE)

• PHONE must be exactly 8 digits long, beginning with either 3, 6, 8 or 9.
• Additionally, the new number must not already be assigned to any existing contact in the list.

Email (e/EMAIL)

• The EMAIL (if provided) must be in a valid email address format (i.e. name@domain.com), without spaces.
• Local-part of an email must NOT contain 2 or more consecutive dots (e.g. johny..test@gmail.com would be invalid)
• Local-part of an email are ALLOWED to have multiple consecutive special characters (+, -, _)
• Local-part of an email are ALLOWED to have dots (.), but the dots must not appear consecutively (e.g. Johnny…..test@example.com)
• Email MUST contain a Top-Level Domain.

Examples:

• edit 1 p/91234567 e/johndoe@example.com Edits the phone number and email address of the 1st contact to be 91234567 and johndoe@example.com respectively.

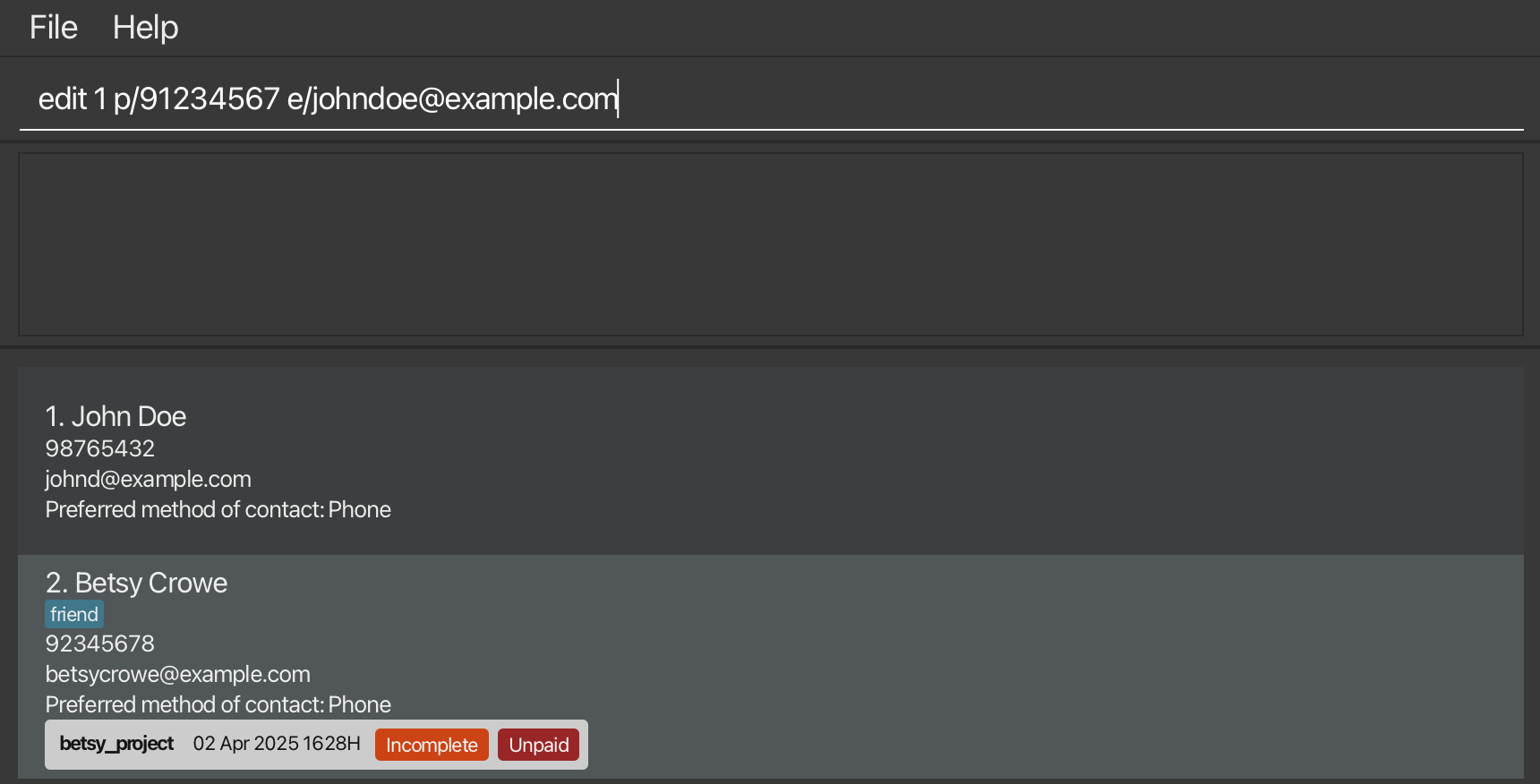

Before edit

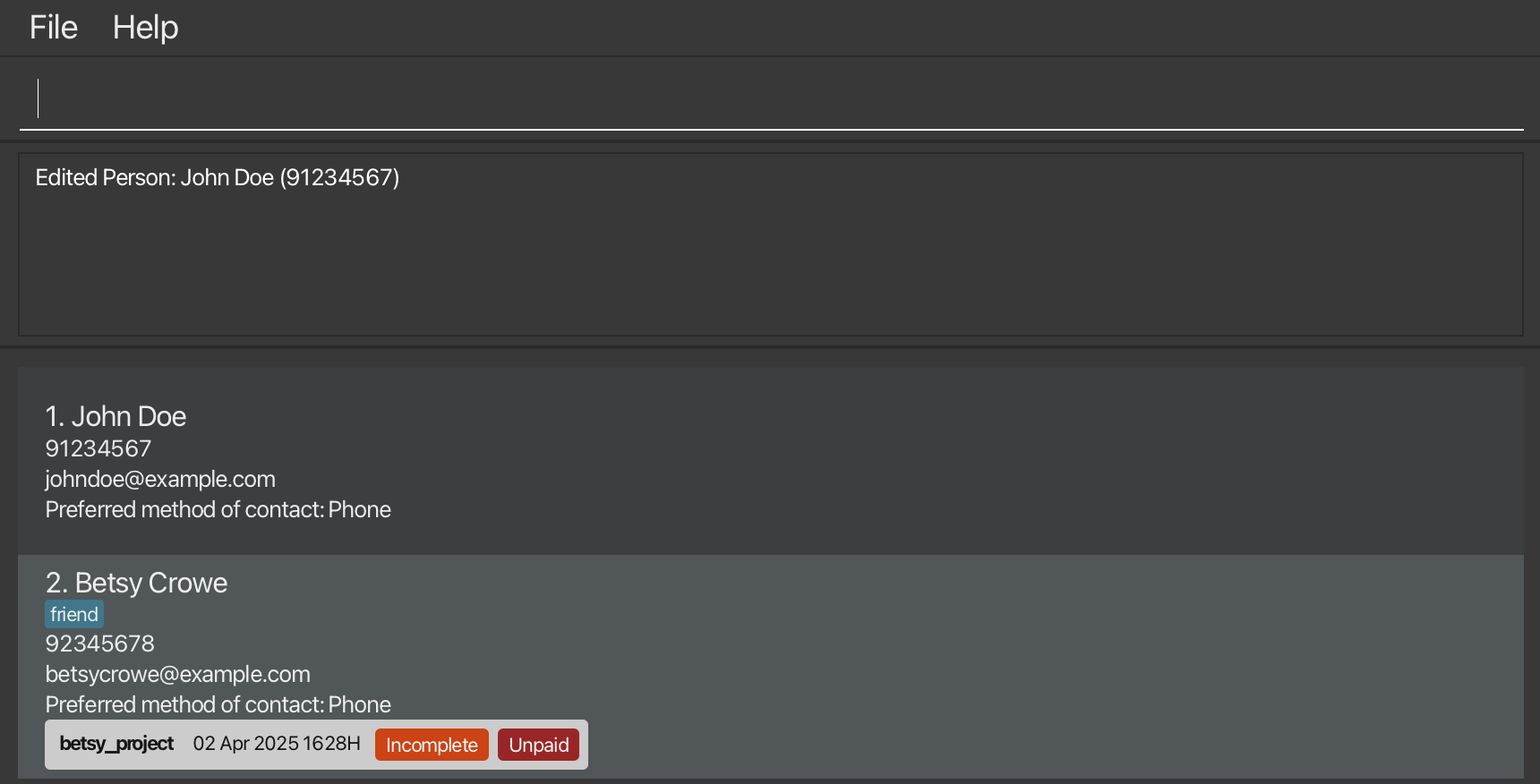

After edit

Locating contacts: find

Finds contacts whose name or phone numbers contain any of the given keywords

Format: find (n/NAME [NAME]…​ | p/PHONE [PHONE]…​)

• Only one type of search per command is allowed, either by NAME (alphabetic characters) or by PHONE (integers 0-9).
• In each use of this command, there must be at least one NAME or PHONE specified.

Search by NAME (n/NAME)

• The order of the NAME does not matter. e.g.Hans Bo will match Bo Hans.
• The search for NAME is case-insensitive. e.g hans will match Hans
• Leading and trailing whitespaces around each NAME keyword will be trimmed. For example, “Hans   ” (with trailing spaces) will be treated as “Hans”, and “   Hans” (with leading spaces) will also be trimmed.
• Spaces between NAME keywords will not be trimmed. For example, “Hans Bo” will be treated as two separate keywords, while “Ha ns” (with a space inside) will remain as-is and will not match “Hans”.
• Only the contact’s name is searched.
• Only full words will be matched e.g. Han will not match Hans
• Contacts matching at least one keyword will be returned (i.e. OR search). e.g. Hans Bo will return Hans Gruber, Bo Yang

Search by PHONE (p/PHONE)

• The order of the PHONE does not matter. e.g.88888888 66666666 will match 66666666 88888888.
• Leading and trailing whitespaces around each PHONE keyword will be trimmed. For example, “88888888   ” (with trailing spaces) will be treated as “88888888”, and “   88888888” (with leading spaces) will also be trimmed.
• Spaces between PHONE will not be trimmed. For example, “88888888   66666666” will be treated as two separate keywords, while “8888 8888” (with a space inside a number) will remain as-is and will not match “88888888”.
• Only the Contact’s phone number is searched.
• Only full phone numbers will be matched e.g 888 will not match 88888888.

Examples:

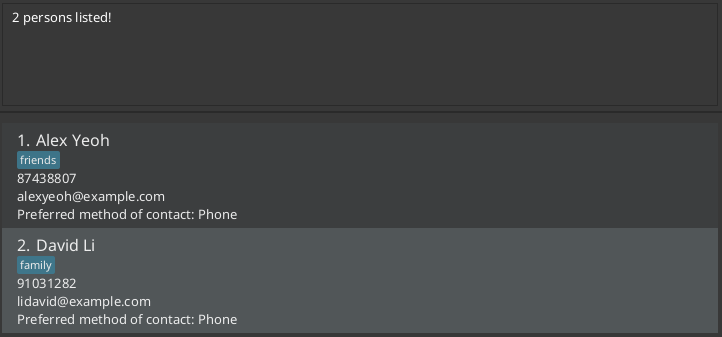

• find n/alex david returns Alex Yeoh, David Li

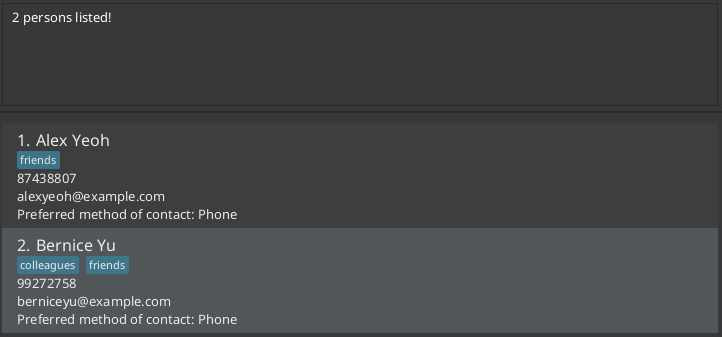

• find p/87438807 99272758 returns Alex Yeoh, Bernice Yu


Deleting a contact: delete

Deletes the specified contact in the current displayed contact list from ArtHive.

Format: delete (INDEX | p/PHONE )

• One and only one of INDEX or p/PHONE must be provided.

• Deletes the contact at the specified INDEX or with the specified PHONE.

  • The index refers to the positive integer within the bounds of the displayed contact list 1, 2, 3, …​
  • The INDEX must be a valid index (i.e. Positive integer within the bounds of the displayed contact list).

Phone (p/PHONE)

• The PHONE must be an exact 8-digit phone number and must belong to a contact in the current displayed contact list.

Examples:

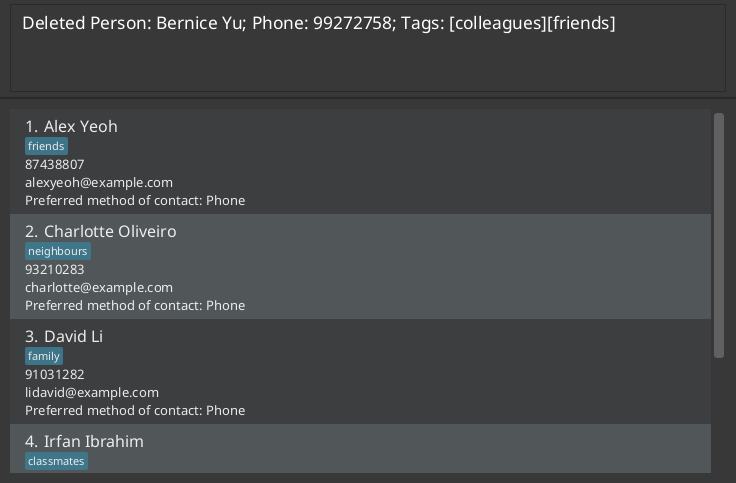

• list followed by delete 2 deletes the 2nd contact in ArtHive.

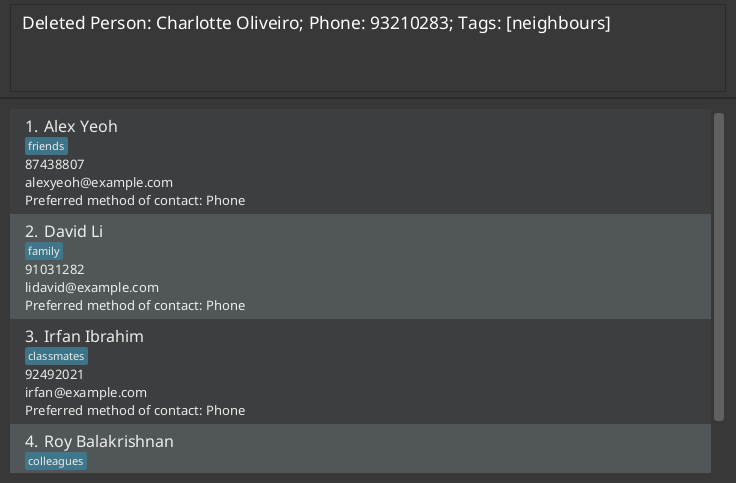

• list followed by delete p/93210283 deletes the contact with phone number 93210283.

• find Betsy followed by delete 1 deletes the 1st contact in the results of the find command.

Tagging a Contact with a Tag/Project : tag

Assigns a Tag and/or a Project to an existing contact in ArtHive.

Format: tag p/PHONE (t/TAG | proj/PROJECT) [t/TAG]…​ [proj/PROJECT]…​

• Adds one or more Tags/Projects to the contact specified by PHONE.
• In each use of this command, there must be at least one TAG or PROJECT specified.

Phone (p/PHONE)

• The PHONE must be an exact 8-digit phone number and must belong to a contact in the current contact list.

Tag/Project (t/TAG/p/PROJECT)

• TAG/PROJECT can only contain alphanumeric characters with underscore and hyphens, and be between 1 and 20 characters long.
• TAG/PROJECT are case-insensitive and will be automatically converted to lowercase regardless of input. For example, PROJ-X will be saved and displayed as proj-x. If another Proj-X is added to the same contact, it will be considered as adding a Tag/Project that already exists.
• Projects will have a default values of “Incomplete”, “Unpaid”, and a deadline set 1 day after creation. Modifications can be made using the setstatus command.
• The existing Tags/Projects of the contact will not be removed when new Tags/Projects are added.
• Adding a Tag/Project that already exists for a contact will not result in an error, and the system will remain unchanged.

Examples:

• tag p/81234567 t/friend Adds a Tag friend to the contact who has the phone number 81234567.

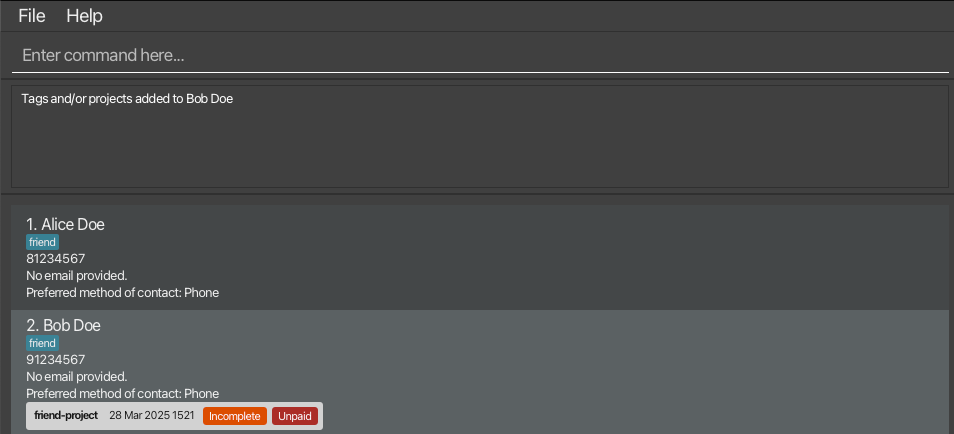

• tag p/91234567 t/friend proj/friend-project Adds the Tagfriend and Project friend-project to the contact who has the phone number 91234567.

Untagging a Contact with a Tag/Project : untag

Deletes a Tag and/or a Project from an existing contact in ArtHive.

Format: untag p/PHONE (t/TAG | proj/PROJECT) [t/TAG]…​ [proj/PROJECT]…​

• Removes one or more Tags/Projects from the contact specified by PHONE, if it exists.

Phone (p/PHONE)

• The PHONE must be an exact 8-digit phone number and must belong to a contact in the current contact list.

Tag/Project (t/TAG/p/PROJECT)

• In each use of this command, there must be at least one TAG or PROJECT specified.
• TAG/PROJECT can only contain alphanumeric characters with underscore and hyphens, and be between 1 and 20 characters long.
• Untagging a Tag/Project from a contact deletes the Tag/Project forever.

Examples:

• Contact A with phone number 81234567 has no tags. untag p/81234567 t/friend returns an error message as the Tag does not exist.

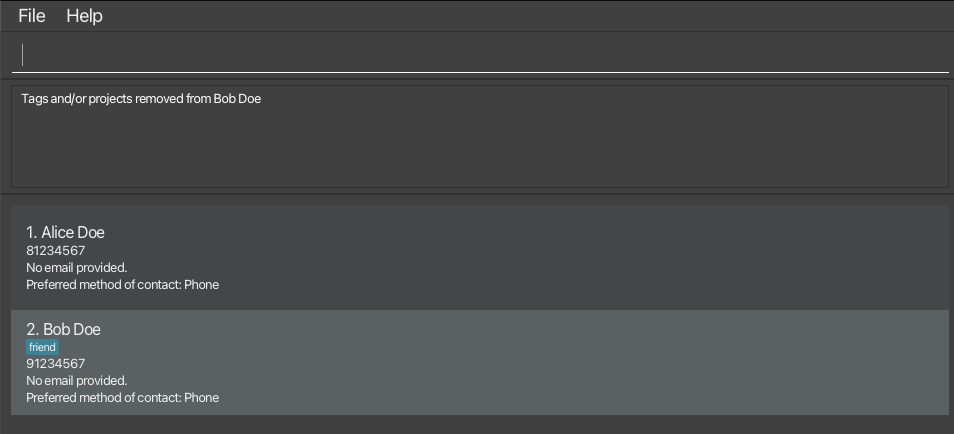

• Contact B with phone number 91234567 has 1 Tag friend and 1 Project friend-project. untag p/91234567 proj/friend-project removes the Project friend-project only.

Updating the status of a Project : setstatus

Updates the status of a Project from an existing contact in ArtHive.

Format: setstatus INDEX proj/PROJECT [pay/PAYMENT] [by/DEADLINE] [prog/PROGRESS]

• Updates the Project tagged to the contact at the specified INDEX. The INDEX refers to the index number shown in the displayed contact list. The INDEX must be a positive integer 1, 2, 3, …​
• The INDEX must be a valid index (i.e. Positive integer within the bounds of the displayed contact list).
• At least one of the optional fields must be provided.
• Existing values will be updated to the input values.

Payments (pay/PAYMENT)

• PAYMENT must be either Paid or Unpaid (case-insensitive).

Deadlines(by/DEADLINE)

• DEADLINE must be in a dd MMM uuuu HHmm format. (e.g 01 Apr 2025 2359). No check for past date is done

Progress (prog/PROGRESS)

• PROGRESS must be either Complete or Incomplete (case-insensitive).

Note: Deadlines set in the past are allowed, and ArtHive does not notify users of approaching or missed deadlines.

Examples:

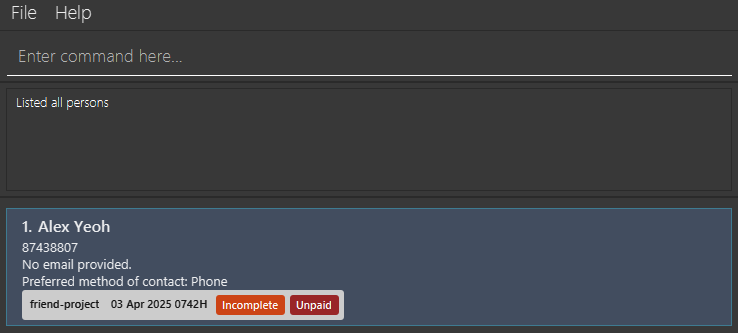

• Alex Yeoh at INDEX 1 has a PROJECT called friend-project.

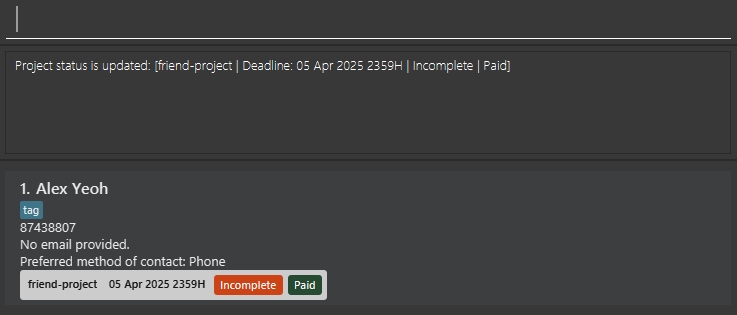

• setstatus 1 proj/friend-project pay/paid by/05 Apr 2025 2359 Updates the PAYMENT to Paid and the DEADLINE to 05 Apr 2025 2359

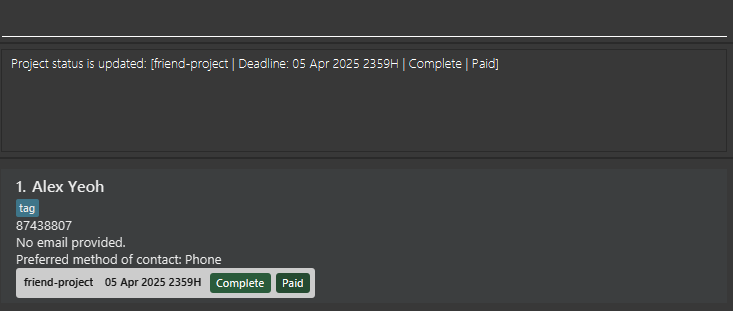

*setstatus 1 proj/friend-project prog/complete Updates the PROGRESS to Complete

Saving the data : save

Saves ArtHive data in the hard disk via passive (automatic) save or active (manual) save. Passive save activates after any command that changes the data. Active save activates when the user type in save as the command. This can be coupled with a [filename] parameter to change the name of the saved file. Upon changing the saved file name, all subsequent saves will be written to the new file.

Caution: When using save [filename], if a file with the same name already exists in the [JAR file location]/data/ directory (even if unrelated to ArtHive), it will be overwritten without warning.

Format: save [filename]

• Saves the data to the hard disk.
• filename restrictions:
  • May only contain letters (a-z, A-Z), numbers (0-9), underscore (_), and hyphen (-).
  • No spaces or other special characters are allowed.

Examples:

• save proceeds to save the data to the [JAR file location]/data/ directory with the filename specified in preferences.json.

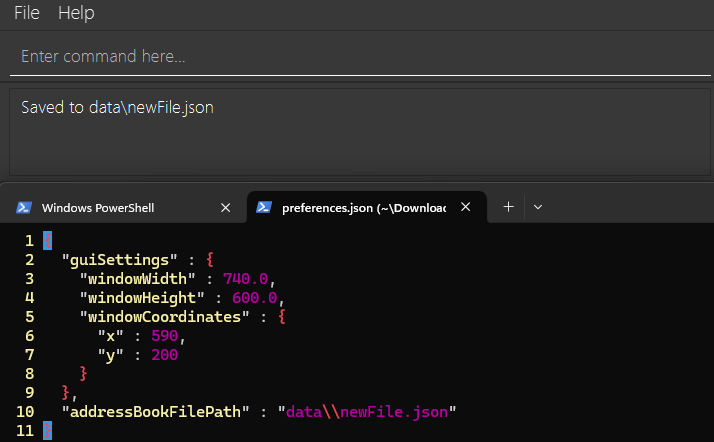

• save newFile proceeds to save the data to [JAR file location]/data/newFile.json, deletes old saved file, and updates preferences.json.

Editing the data file

ArtHive data are saved automatically as a JSON file [JAR file location]/data/[filename].json. Advanced users are welcome to update data directly by editing that data file.

Note: [filename] refers to the saved file name that is specified in preferences.json

Caution: If your changes to the data file makes its format invalid, ArtHive will discard all data and start with an empty data file at the next run. Hence, it is recommended to take a backup of the file before editing it.
Furthermore, certain edits can cause ArtHive to behave in unexpected ways (e.g., if a value entered is outside of the acceptable range). Therefore, edit the data file only if you are confident that you can update it correctly. Hence these are some steps that you should take prior to editing the data file: 1. Create a snapshot using the snapshot command. 2. Make a separate manual backup of your data file (just in case). 3. Exercise extreme caution when editing JSON structures. If you experience data corruption after manual edits, you can restore from a snapshot as describe in the “Creating the snapshot of data” section.

Creating snapshot of data: snapshot

Creates snapshot of the existing data in the snapshots directory with a datetime stamp (“dMMMuuuu_HHmmss”).

Format: snapshot

Examples:

• snapshot proceeds to create a snapshot of the existing save file with the name represented with the current datetime (e.g., 24Mar2025_172159.json).

Note: Currently, ArtHive does not provide a direct command to restore from snapshots. To use a snapshot: 1. Locate the snapshot file in the [JAR file location]/snapshots/ directory. 2. Copy the desired snapshot file to [JAR file location]/data/. 3. Rename the snapshot file to match the filename specified in preferences.json. 4. Restart ArtHive to load the restored data. </ol>

Switching preferred contact : switchcontact

Switch preferred contact.

Format: switchcontact p/PHONE

• If the current preferred contact method is email, it will switch to phone.
• If the current preferred contact method is phone, it will switch to email, provided the contact contains an email.
• phone is the default preferred contact method when a contact is created.
• If the contact does not have an email, the preferred contact method will remain as phone.
• The PHONE must be an exact 8-digit phone number and must belong to a contact in the current contact list.

Examples:

• switchcontact p/91234567 Switches the preferred contact method for the contact with phone number 91234567.

Clearing all entries : clear

Clears all entries from ArtHive, and deletes all the data from the savefile.

Format: clear

Caution: Successful execution of this command will cause all contact data to be lost permanently and is irreversible.

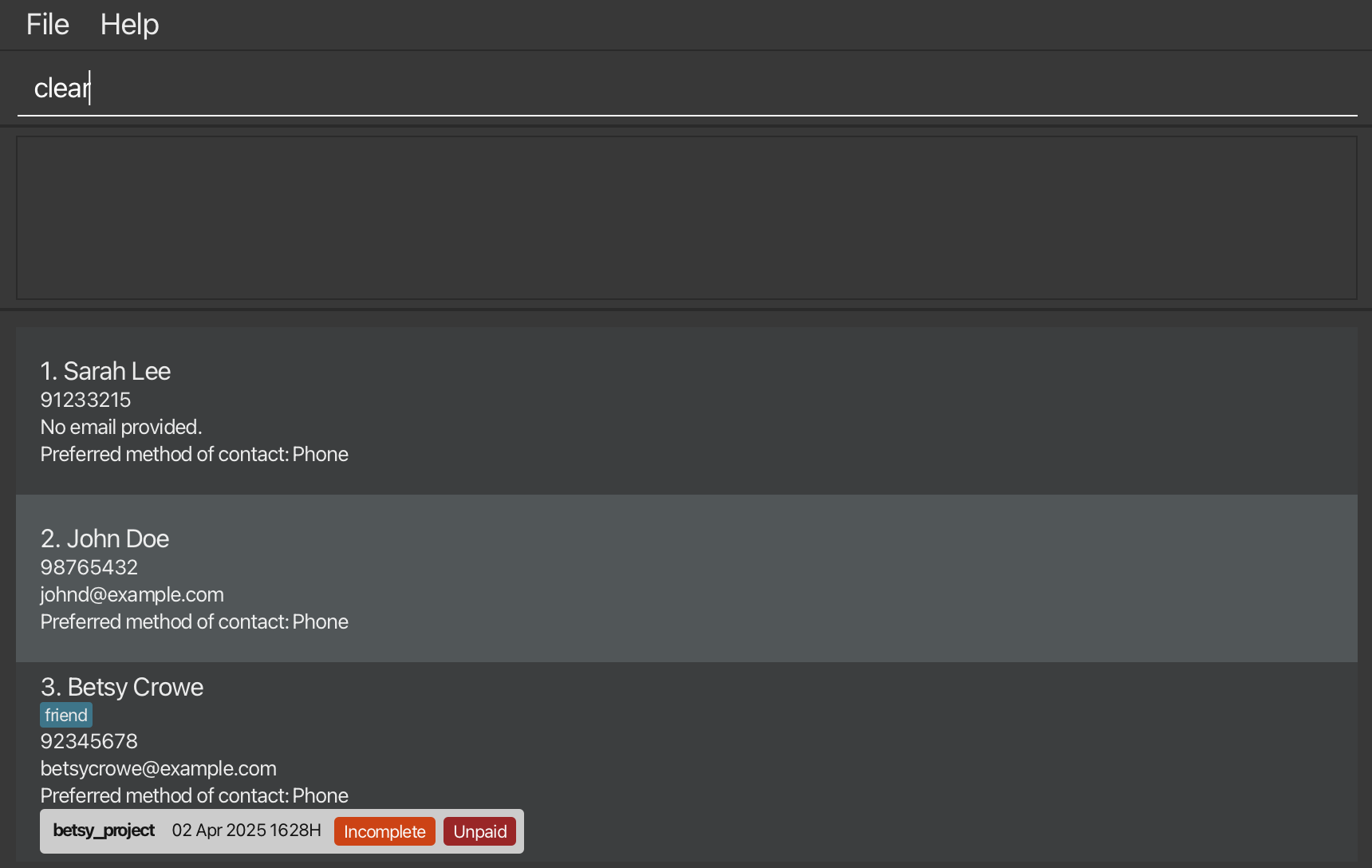

Before clear

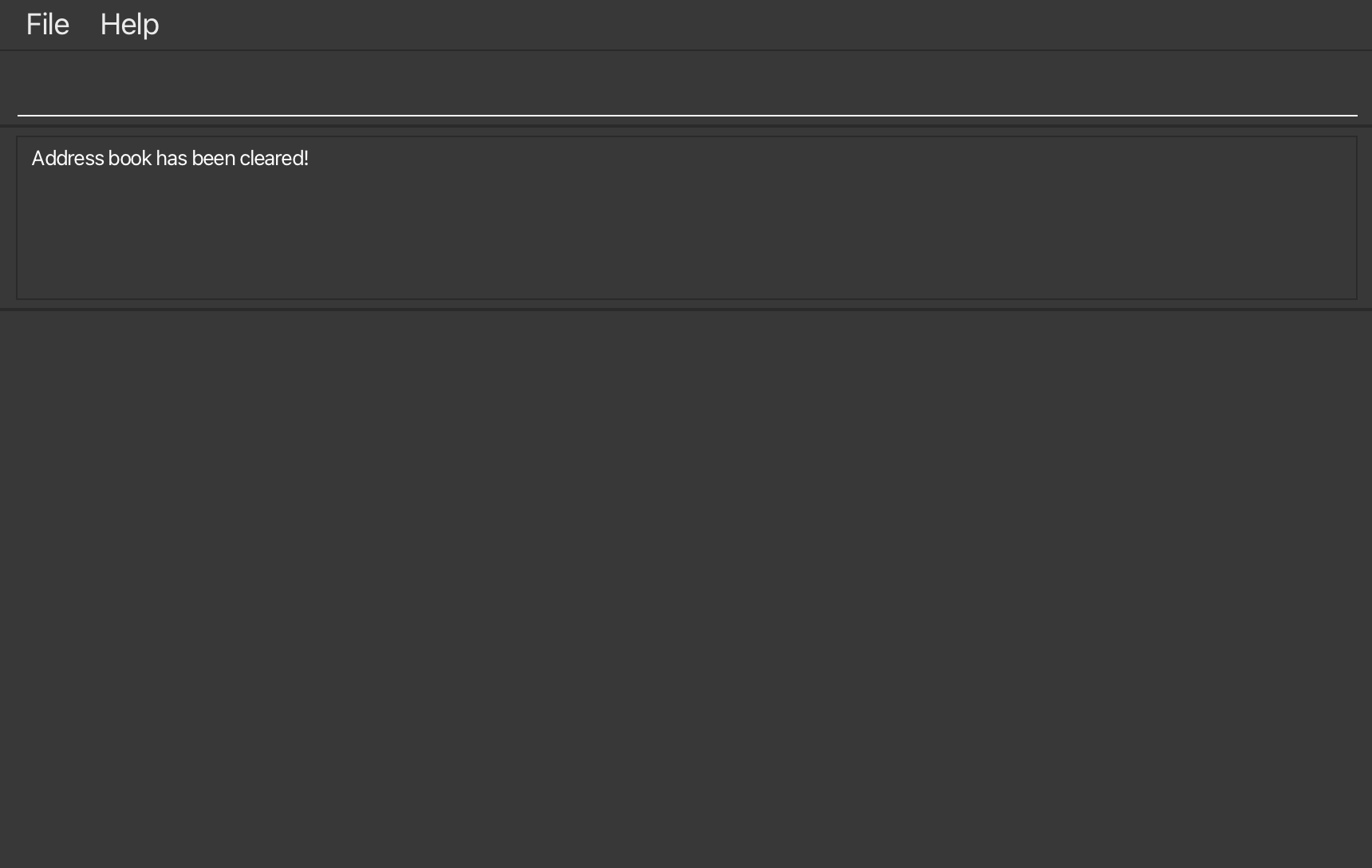

After clear

Exiting the program : exit

Exits the program. The application window will close soon after.

Format: exit

FAQ

Q: How do I transfer my data to another computer?
A: Install the app in the other computer and overwrite the empty data file it creates with the file that contains the data of your previous ArtHive home folder.

Known issues

1. When using multiple screens, if you move the application to a secondary screen, and later switch to using only the primary screen, the GUI will open off-screen. The remedy is to delete the preferences.json file created by the application before running the application again.
   Caution: Deleting preferences.json will reset ArtHive to use the sample data provided,and it will be saved to the file name specified in preferences.json. If you previously used the save [filename] command to change your save file, you should first:


• Back up your current data file from [JAR file location]/data/[custom-filename.json].

• After deleting preferences.json and restarting ArtHive, use the save command again or manually copy your backed-up data to the default location.

  </div> 2. If you minimize the Help Window and then run the help command (or use the Help menu, or the keyboard shortcut F1) again, the original Help Window will remain minimized, and no new Help Window will appear. The remedy is to manually restore the minimized Help Window.

Command summary
